Lens cleaning at its best

Hydra-Brush-4 combines the industry's smallest footprint with innovative features for advanced, efficient and sustainable cleaning of up to 270 lenses/hour. Compared to manual cleaning it saves time and manpower and eliminates the risk of inconsistent cleaning quality or damages to the lens.

4-stage cleaning process for perfectly clean and dry lenses:

  1. Cleaning with detergent and a rotating soft brush,
  2. Rinsing with city water,
  3. Rinsing with DI water,
  4. Drying
  • Unique chainless lens transfer system prevents carryovers of residue and dirt between cleaning chambers, making the cleaning performance of the Hydra-Brush-4 far superior to other automatic cleaning systems.
  • DI water consumption of only 2 liters per shift – cost savings up to 90 %
  • Integrated deionization device and sustainable DI water recycling function for constant supply and extended use
  • Automatic refill of detergent and tap water
  • Innovative tray transfer system that returns each lens back to its original tray, making ticket transfers redundant
  • Automatic loading and unloading system for standard conveyor heights
  • Low maintenance effort: brush exchange within seconds
  • Easily handles capacity of a surfacing line with 2x ART-Blocker-A, 2x VFT-orbit-2i, 2x Multi-FLEX-2, and 1x ART-Deblocker-2 and even more

Highlights

Industry’s smallest footprint

Up to 270 lenses/hour on only 5 m² enables labs to maximize the number of lenses cleaned per square meter.

Chainless lens transfer

Unique chainless transfer system prevents cross-contamination between cleaning chambers for perfectly clean lenses.

Tray and ticket transfer system

Clean lenses go in fresh trays, tickets transfer automatically – maintaining perfect lens cleanliness & preventing ticket mix-ups

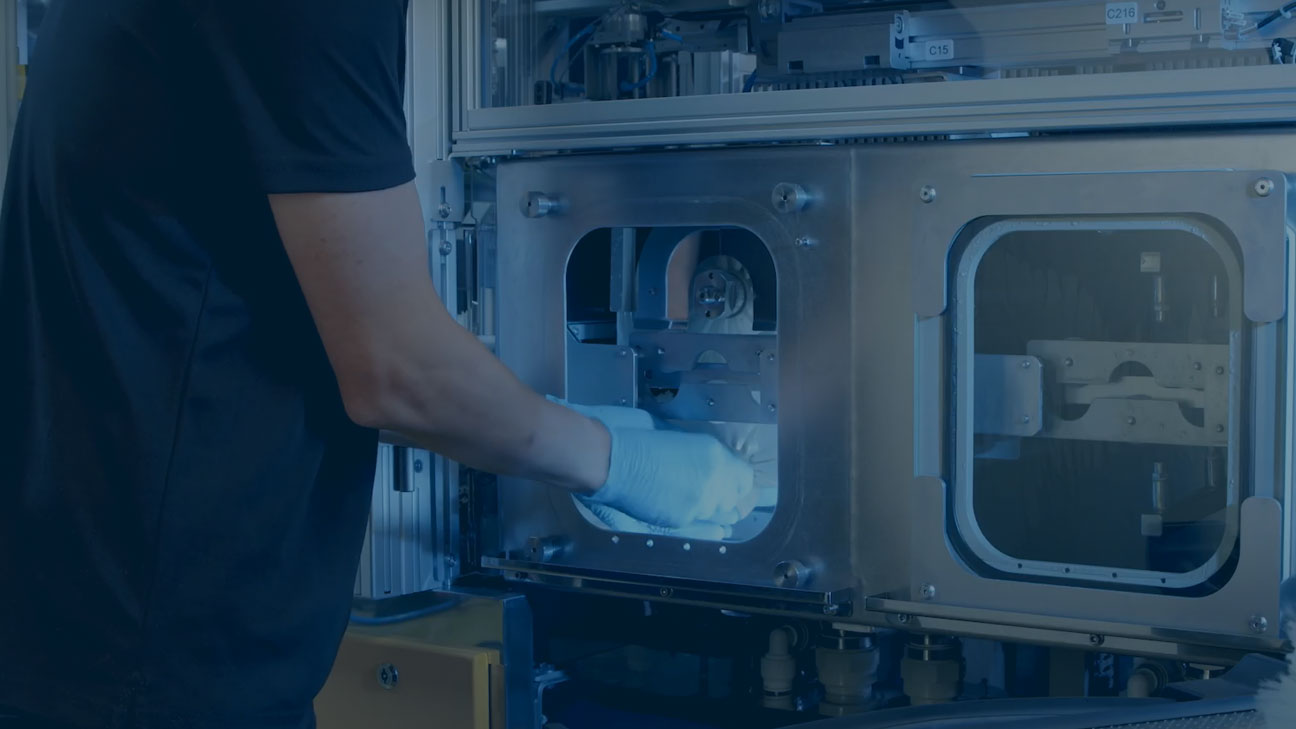

Video

Tech Specs

Productivity:Up to 270 lenses/hour
Lens materials:All organic materials
Working range:Maximum total thickness: up to 18 mm
Edge thickness: 0.1 mm (knife edge) up to 18 mm
Lens diameter: 45-80 mm
Weight:1260 kg / 2778 lb
Dimensions (wxdxh):3170 x 1711 x 2299 mm / 125 x 68 x 91 in
Power supply:400V 3 Ph + N + Gnd – 16 kW
Compressed air:6 bars, 500 liters/min

All technical data subject to change without notice. Verify details with Satisloh.

Standard Configuration

  • DI water recovery
  • Manual and automatic DI-water supply
  • UV light for DI-water recovery
  • Tray turner
  • Adjustable brushes
  • Durable materials (stainless steel working chamber, polypropylene pipes, etc.)

Options

  • Bar code reader
  • Air exhaust with condenser
  • Tray and ticket exchange system
  • Process control kit (recommended for > 2 shifts):
    • Automatic detergent refilling
    • Refilling and re-circulation flowmeters
    • Ultrasonic flowmeter on detergent circuit
  • Satisloh® MES-360

Purchase a Hydra-Brush-4 and get a

MES-360 Lite for free.


Your introduction to Industry 4.0 with MES-360 Lite
Increasing transparency and visibility of your equipment performance is key to optimizing your production and reducing costs. MES-360 Lite provides daily reports using pre-established KPI to track.
