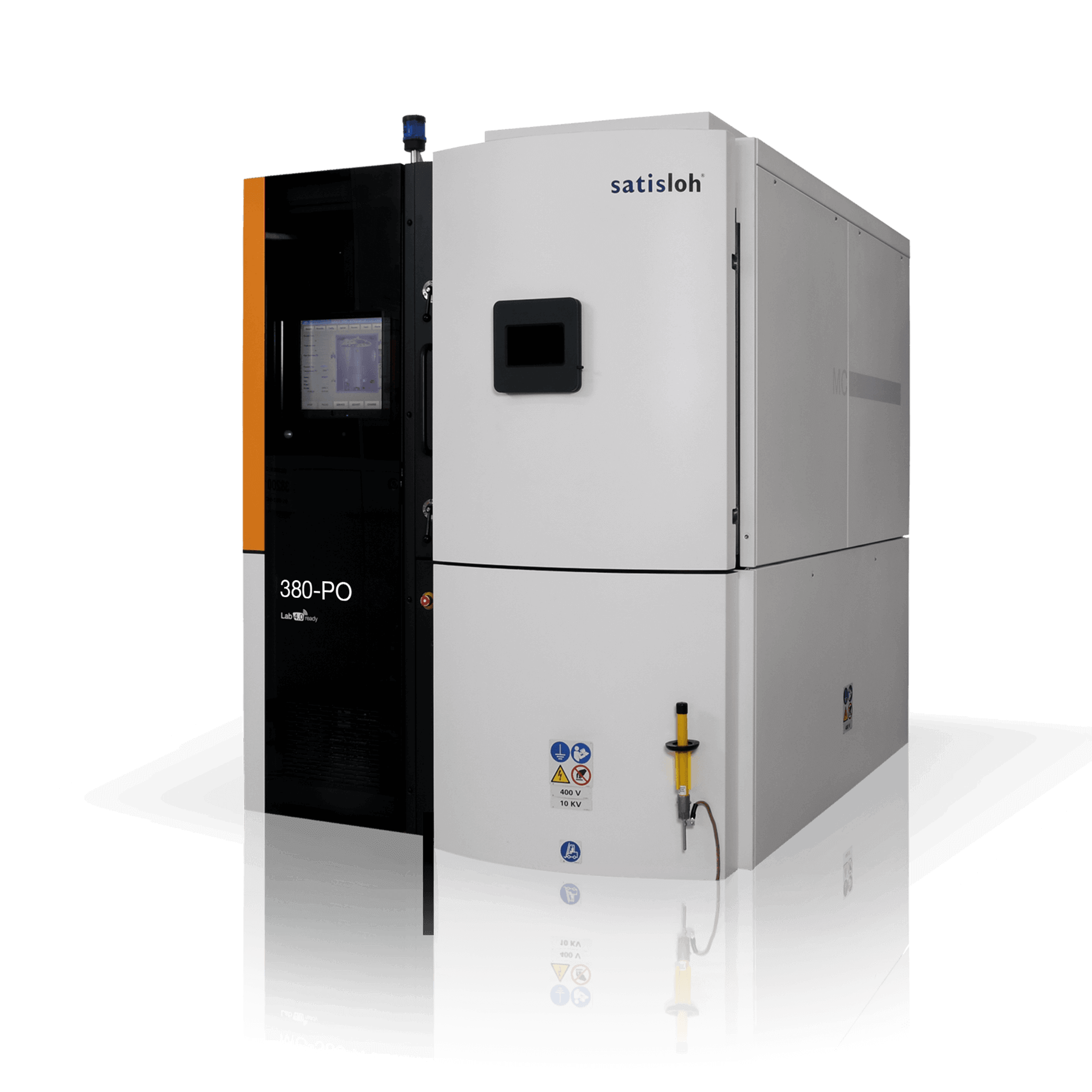

380-PO

380-PO box coating system provides valuable process flexibility to deposit a multitude of thin-film coating types on plastic and glass via thermal evaporation processes (PVD).It provides consistent, sophisticated thin-film stacks with intuitive and easy process setup.

Contact me

Top of the class for mid to small-sized optics production

The 380-PO perfectly proves that great technical equipment can easily go along with low cost of ownership. The box coater can be equipped with a dome, flip-over or other substrate holder options providing great process flexibility. Rapid cycle times allow for optimum throughput making the 380-PO the perfect choice for all mid to small sized optics production needs. Optional dry pumping makes it suitable also for UV/DUV coating.


Flexibility & Efficiency

  • Rapid cycle times with Meissner trap water vapor pumping.
  • High temperature and low temperature substrate heating options.
  • Single EBG and thermal resistive sources.
  • Optional high power Ion Gun for low stress and shift free coatings.
  • 3-sector dome, full dome or flip-over system options on request.
  • User-friendly HMI control software.
Substrate material: Polymers, glass, and IR optics
Substrate holder: Full dome, planetary system or 3- sector dome
Capacity: Up to 74 lenses with Ø 70 mm with full dome
Dimensions (wxdxh): 1609 x 2157 x 2195 mm / 64 x 85 x 87 inches
Weight: Approximately 1570 kg / 3461 lb

All technical data are subject to change without notice. Verify details with Satisloh.

Purchase a 380-PO and get your MES-360 Lite for free!

Your introduction to Industry 4.0 with MES-360 Lite
Increasing transparency and visibility of your equipment performance is one of the key levers to optimizing your production and reducing costs. MES-360 Lite provides daily reports using pre-established KPI to track machine utilization, production throughput, and top 5 errors for all of your Satisloh Lab 4.0 ready machines.

MES-360 Lite is easy to install, needs minimal maintenance (Windows OS updates), and only requires basic computers skills. The system allows up to 50 machine connection.

Upgrade MES-360 Lite to the full version at any time or add individual modules as your needs change.
