ART-Deblocker-2

ART-Deblocker-2, the next generation of fully automated and alloy-free lens surface deblocking. The lens deblocking system separates lens, block-piece, and adhesive using a high-pressure water jet.

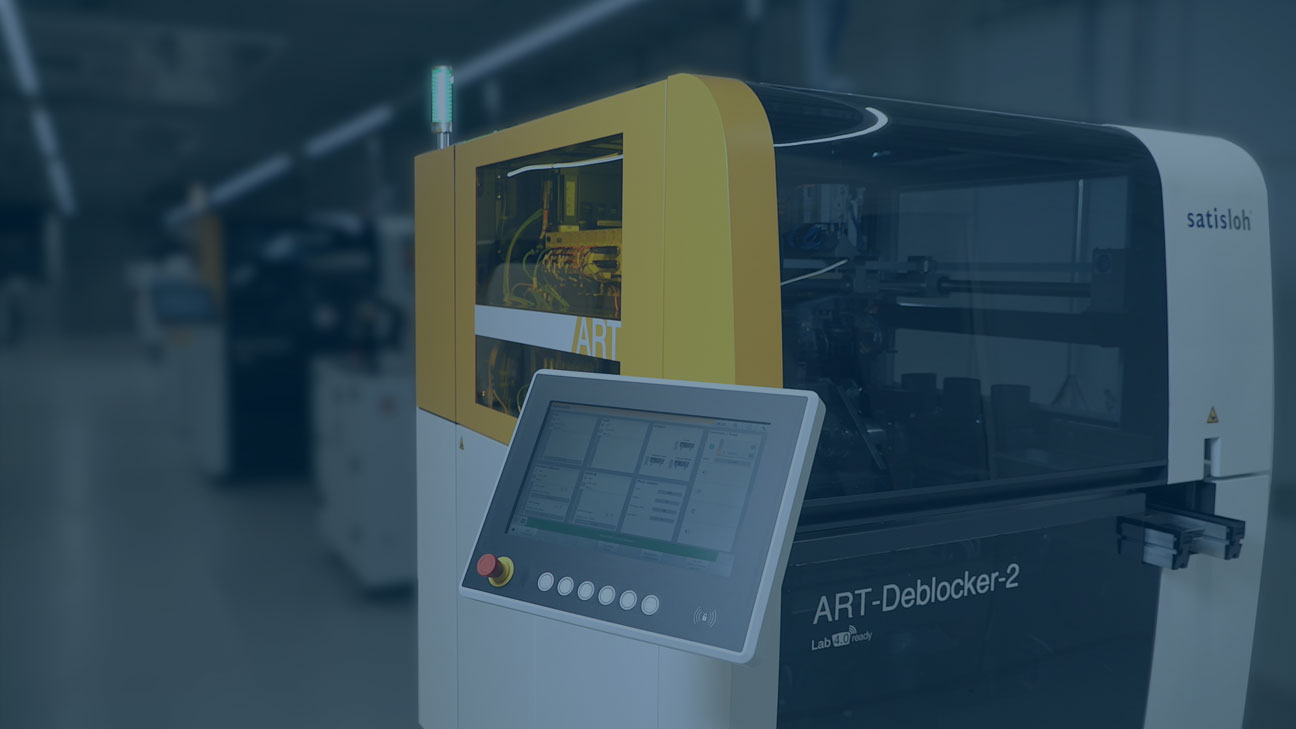

Satisloh ART-Deblocker-2 - automated lens deblocking system
Satisloh ART-Deblocker-2 - automated lens deblocking system
Satisloh ART-Deblocker-2 deblocking process water jet
Satisloh ART-Deblocker-2 easy maintenance
Satisloh ART-Deblocker-2 lens back in tray
Satisloh ART-Deblocker-2 lens picking

Fully automated lens surface deblocking

The ophthalmic ART-Deblocker-2 enables labs to fully automate their surfacing operation.

  • Basically, ART-Deblocker-2 features Alloy Replacement Technology and supports all the positive aspects of non-alloy production. In other words, it features environmentally-friendly production, time & quality savings, and compatibility with other manufacturers’ equipment.
  • Equally important, the machine itself dries both sides of the lens, so they are inspection ready.
  • In addition, the lens deblocking system sorts blocks back in job tray after the deblocking process.
  • Also to mention, it needs up to 18% less floor space than its predecessor.
  • Last but not least, side, back and front doors can be fully opened for best accessibility and easiest serviceability.

Additionally required

  • An external water-filtration-system (WFS). For best processing, we recommend WFS-2 to reduce water usage by up to 80%.



    Productivity:~ 200 lenses/hour
    Working range:Lens diameter 50 – 85 mm
    Lens thickness up to 30 mm
    Plano up to +18 dpt base curve
    Prism up to 5.5°
    Progressives, multi-focals, single vision lenses
    Lens material:All standard organic materials, photochromic and polarized blanks
    Dimensions (wxdxh):1502 x 2140 x 2078 mm / 60 x 85 x 82 inches, without water-filtration system and chiller
    Weight:1900 kg / 4190 lbs

    All technical data subject to change without notice. Verify details with Satisloh.
