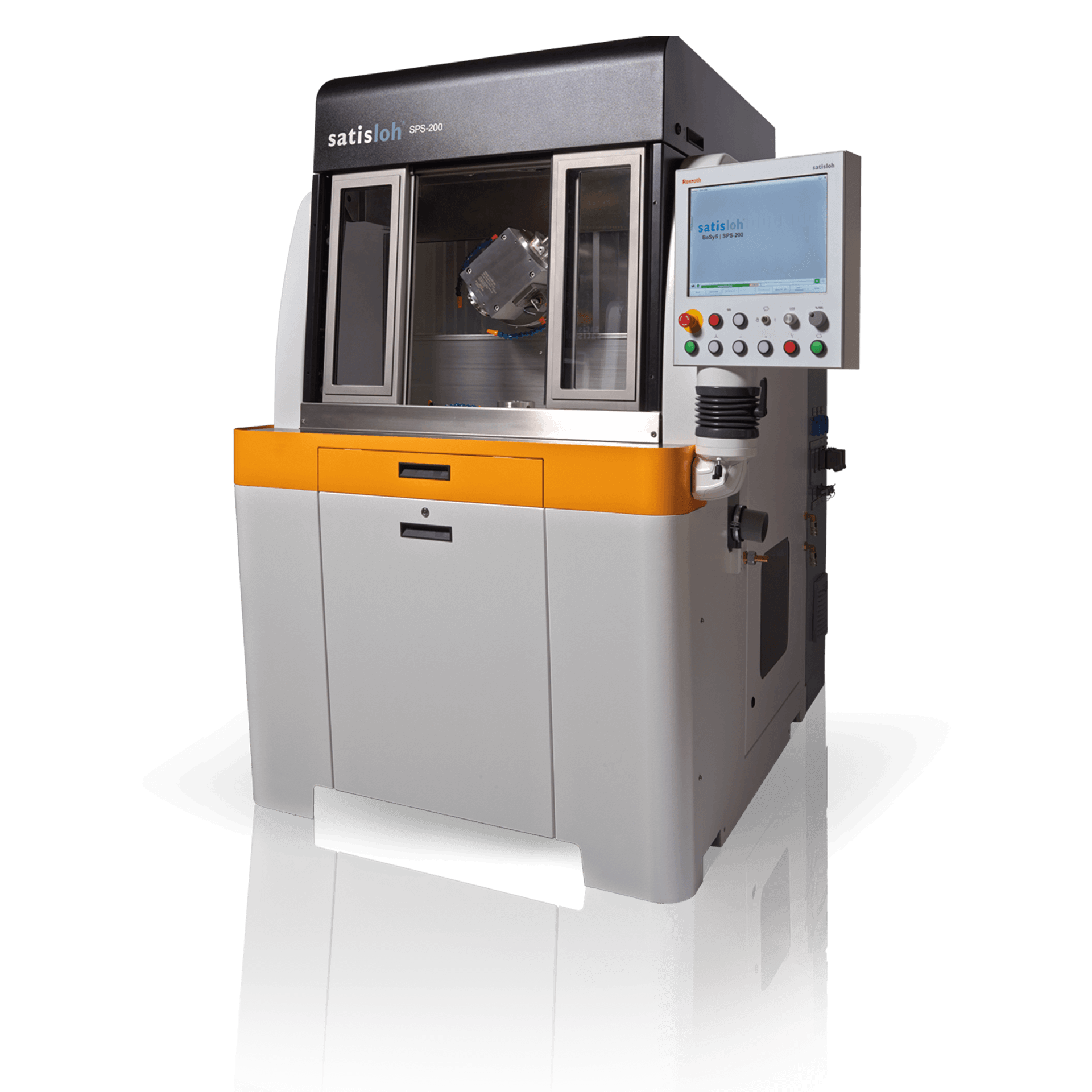

The SPS-200 precision optics polisher processes spheres, aspheres, and freeform surfaces within a working range of 5–200 mm, but also a wide spectrum of other optical surfaces such as cylinders, toroids, and more.
Consistent polishing accuracy across a wide range of optical shapes
SPS-200 not only offers polishing in Synchrospeed and Variospeed mode, but adaptive deterministic pre- and corrective polishing technology (ADAPT) to achieve highly accurate yet efficiently produced aspheres and freeforms.
Efficient and flexible
- Extended Y-axis and various spindle combinations enable maximum process flexibility on polisher.
- Two polishing speed settings - Synchrospeed or VarioSpeed mode.
- Unique dual-spindle technology and the integrated dressing spindle on the polisher save setup times and allow multiple processes without retooling.
Reliable and precise
- Adaptive Deterministic Advanced Polishing Technology (ADAPT) allows operators to process highly accurate aspherical and freeform shapes in an efficient and repeatable way.
- Water-cooled, direct driven linear axes guarantee highly dynamic and precise movements for perfect surface precision.
- 3D process simulation for high process safety.
- The machine’s Integrated Quality control System (IQS) automatically adjusts for tool wear, compensating for any inaccuracies.
- The unique and proven polymer concrete base and vibration-dampening machine feet provide high levels of stability.
Easy to use
- Satisloh’s guided software interface BaSyS allows for easy and convenient manufacturing set-up.
- Easily accessible machine design allows for convenient operating, plus fast and easy maintenance.
|Geometries:||Spheres, aspheres, cylinders, toroids, freeforms, & other optical surfaces|
|Working range:|| |
Spherical Ø 5–120 mm (up to 140 mm with restrictions) Aspherical Ø 10–300 mm
|Dimensions (wxdxh):||1200 x 1850 x 1970 mm / 47.2 x 72.8 x 77.5 inches|
|Weight:||Approximately 3200 kg / 7054 lb|
All technical data are subject to change without notice. Verify details with Satisloh.
