Layoutblocker-PRA is a manual, high volume ophthalmic lens surface blocker. It features lens blocking with alloy.

Ever thought about moving away from alloy blocking? Non-alloy lens production avoids the negative environmental, health impacts and improves quality and efficiency.

ART - Alloy Replacement Technology (ART)

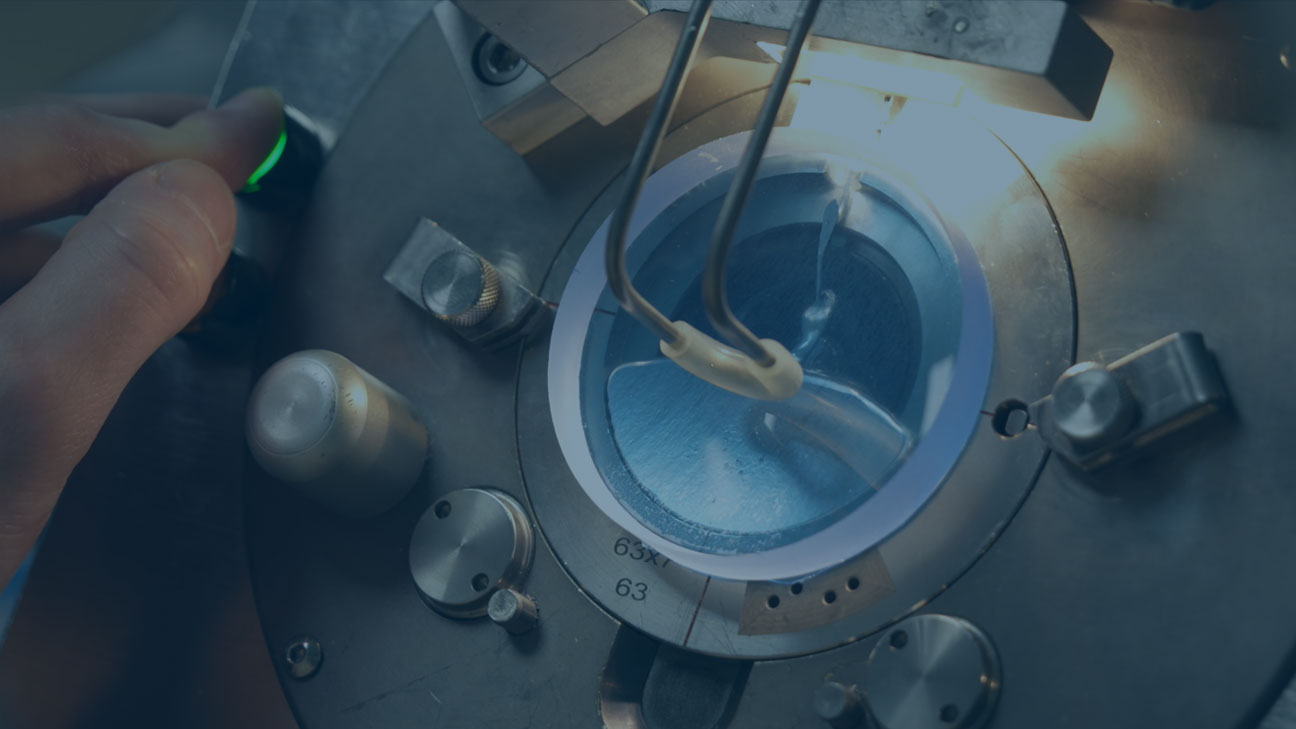

Satisloh Layouzblocker-PRA manual high volume alloy lens blocking
Satisloh Layoutblocker-PRA alloy blocked ophthalmic lenses
Satisloh Layoutblocker-PRA-alloy lens blocking

Traditional alloy lens blocking

The Layoutblocker-PRA  fits best in traditional production environments where alloy is still be used. In general, labs of this kind are less industrialized. These labs can profit from Layoutblocker-PRA.

  • Basically, the manual ophthalmic blocker is the best solution when high throughput alloy blocking is needed.
  • 2 blocking stations provide precise, fast and easy blocking for highest productivity.

Alloy Blocking Technology

  • Furthermore, process data can be entered from a host computer via optional bar code scanner or manually.
  • In addition, control software automatically checks the correct selection of the block-ring.
  • Layoutblocker-PRA features an optical lens recognition system: a “go/no go” indicator alerts the operator when the lens is correctly positioned.

Easy to use

  • The system automatically adjusts prism angle, prism base and the axis of the blocking chuck.
  • Finally, the precise auto-fill feature creates a consistent alloy wafer on every lens – minimizing operator intervention.
Productivity:up to 120 lenses/hour
Working range:

plano up to +15 dpt.
prism up to 5°
progressives, multi-focals, single vision lenses

Lens material:all organic materials
Dimensions (wxdxh):1050 x 950 x 1000 mm / 41 x 37 x 39 inches
Weight:180 kg / 397 lb

 All technical data subject to change without notice. Verify details with Satisloh.
