SPM-10

The SPM-10 micro optics grinding machine extends grinding production capabilities to include complex, small lenses, non-linear shapes, and micro optics aspheres with maximum precision and best surface finishing.

Contact me

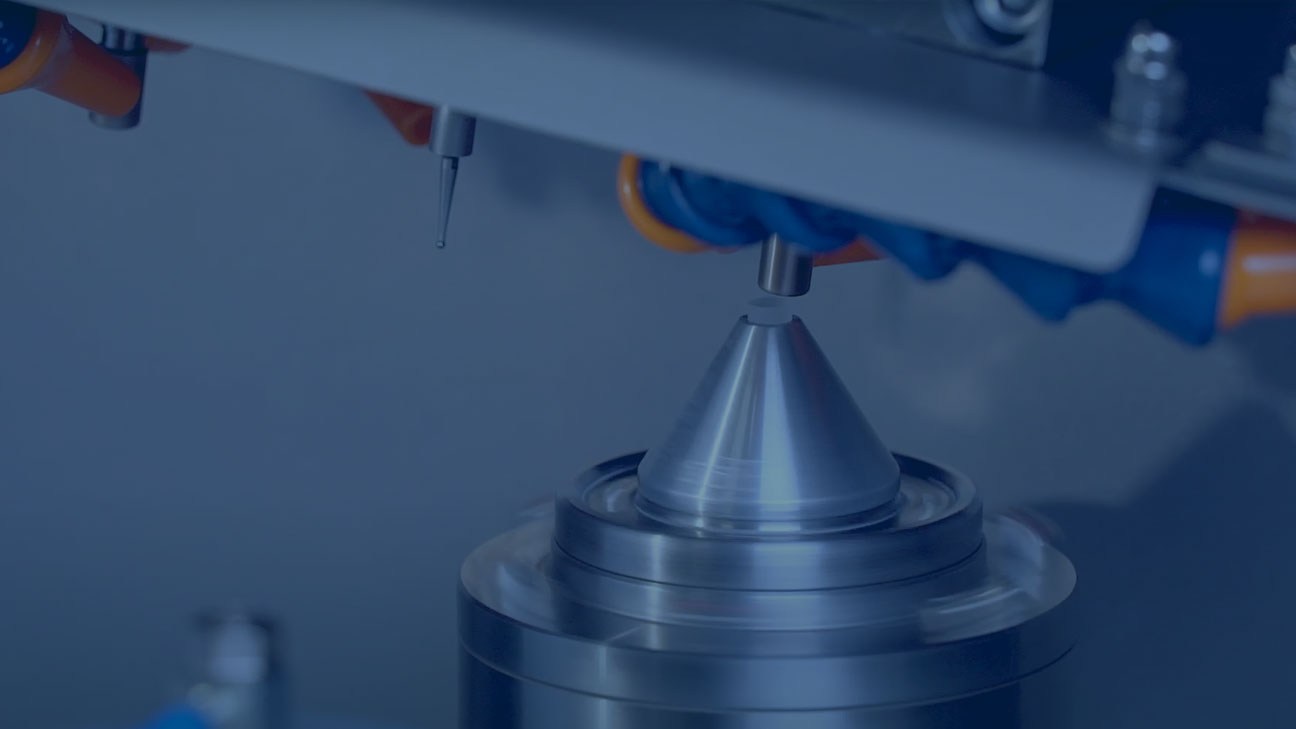

Micro spheres & aspheres grinding

The SPM-10 allows for the production of micro optics spheres and aspheres from the submillimeter range up to 10 mm.


Efficient and flexible

  • The grinding tool spindle offers up to 100,000 rpm for production of smaller workpieces than ever before.
  • A choice of 3 reception systems available for different workpieces; rotor chuck, vacuum chuck or collet chuck.
  • Choose between an air bearing or ball bearing spindle, depending on application.
  • Automated production ready.
  • Optional integration of the HS-30 automation system allows for highly sensitive micro lens handling.
  • Low power consumption and flexible machine location, independent from power source.


Reliable and precise

  • Water-cooled linear drive for highest micro optics precision.
  • Higher position accuracy through C-axis mode of work piece spindle.
  • Direct driven and water-cooled B-axis guarantees better repeatability and higher precision.
  • The machine’s Integrated Quality control System (IQS) automatically compensates for any inaccuracies caused by tool wear.


Easy to use

  • Optimized Human Machine Interface (HMI) allows for easy operation.
  • ReST-interface allows smooth integration into your Manufacturing Execution System.
Geometries: Spheres & aspheres
Working range:

Spherical from Ø <1–10 mm Aspherical from Ø 7–12 mm Tool diameter up to 30 mm

Dimensions (wxdxh):

700 x 1300 x 1725 mm / 28 x 51 x 78 inches

Weight:

795 kg / 1752.67 lb without HS-30 handling system

 All technical data are subject to change without notice. Verify details with Satisloh.

Purchase an SPM-10 and get your MES-360 Lite for free!

Your introduction to Industry 4.0 with MES-360 Lite
Increasing transparency and visibility of your equipment performance is one of the key levers to optimizing your production and reducing costs. MES-360 Lite provides daily reports using pre-established KPI to track machine utilization, production throughput, and top 5 errors for all of your Satisloh Lab 4.0 ready machines.

MES-360 Lite is easy to install, needs minimal maintenance (Windows OS updates), and only requires basic computers skills. The system allows up to 50 machine connection.

Upgrade MES-360 Lite to the full version at any time or add individual modules as your needs change.
